DHIMAN ENGINEERS (REGD.)

Dakhni gate, Nakodar - 144 040 , (Punjab) (India)

Uniplast Candy making plant



Technical data

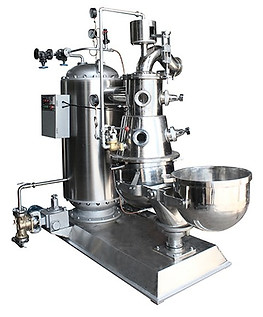

cONTINUOUS cOOKER

Application

Capacity

Batch Time

Drive

  • For Syrup Pump

  • Vacuum Pump

Dimensions

Weight

Cooking and Vacuum

Upto 1650 lbs (750 kg)/ hour

10-15 Minutes/ Batch (Depending on Steam pressure and other  allied  conditions)

2 Motors

1.0 HP 1450rpm​
7.5 HP 1450 rpm

90" X 100" X 96"
(2250 x 2500 x 2400 mm)

Approx. 3950 lbs (1800 kg)

The automatic continuous cooker produces hard-boiled candies of finest quality with extreme smoothness and exceptional clarity. Thanks to the new replacement of round cooking coil , the new straight tubes has much lesser chance of clogging and can be easily cleaned with straight rod.



Cooling plate

Capacity

Water Requirement

Cooling Area

Dimensions  (L X W )

Over all Size (L X W X H)



Weight

50 Kg / 100 kg / 200 Kg

1 Liter to 50 Liters per Hour

(Depending on efficiency of Cooling required and water temperature)

1524 mm X 914 mm

(According to Capacity)

1828 X 914 X 914 mm

(According to Capacity)

Net 500 Kg

(According to Capacity)

Water Cooling tilting type-cooling plate is useful for cooling and mixing of Lollipop/Candy and Toffee batch manually. The Cooling time is less on this plate then ordinary cooling plate because of continuous circulation of water inside the plate. If one side become hot, tilting the plate can use the other side.



CENTER FILLER (LIQUID FILLER)

Model

Application



Capacity



Drive



Dimensions (LWH)



Weight

DCF-P



For filling Liquid/Powder in center of Candies / Chewing gum / Eclairs etc.



Depending upon product size



1.5 HP for Up/Lower System



900 x 600 x 1200mm



Net 600 Kgs.     Gross 700 kgs.

Warm type / Piston Type Center filler is use to supply Liquid material like Honey, paste etc in the center of Candies through Batch Former.



batch roller (motorized lifting)

Capacity

Lifting


Rollers Drive

Heater

Discharge Height

Rope Diameter

Dimensions (L X W X H)

Weight

50 Kg / 90 kg

1 H.P. (According to Capacity)



0.5 H.P. (According to Capacity)

1000 watt

35 " (889 mm)

50-80 mm

1300 X 600 X 1700mm

(According to Capacity)

Net 700 Kg. Gross 1000 Kg

(According to Capacity)

Batch Former form conical shape of kneaded mixed and cooled batch of Lollypop / Candy / Toffee for further feeding into Rope Sizer. It is fitted with heaters to keep the batch warm. It's lifting and lowering mechanism helps the batch coming forward automatically. It is fitted with Stainless Steel Rollers. Electrical reverse and forward system is required extra for operating the batch former. There is ease of taking out rollers for cleaning operation.



Five stage

rope sizer

Application



Speed



Drive

Sizing Wheel Size

Dimension (L X W X H)

Weight

Suitable for Toffee, Lollipop and  Candy forming Machines

Maximum 110-meter rope/minute

1.5  H.P. (A.C. or D.C.Drive)

Input 41 mm

Out 16 mm

1300 mm X 500 mm X 1100 mm

500  Kg.

Five Rope Sizer for making and feeding rope for Toffee Cut & Wrap Machine, Toffee Cut & Fold Wrap Machine.  Fitted with mild steel/gun metal sizing wheels including one vertical pulling head for better rope grip and pulling. Five Stage rope sizer can be use for  Flat Lollipop, Chupa-Chup Lollipop and Candy Forming Machines

AUTOMATIC Uniplast

CANDY FORMING MACHINE

(CAPACITY 4500 KG/SHIFT OF 8 HOURS)

Model



Application

Capacity



Drive

Dimension (L X W X H)

Weight

DCUP-4

Forming of Center Filled Éclair & Hard  Candies



3000-4500 Kgs/shift

(Depending upon type of Candies either it is Center Filled Eclair or Hard Candy)

3 HP A.C.



W 900 mm / L 900 mm / H 1400 mm



Net 950 Kg. Gross 1200 Kg

The UNIPLAST Candy Forming has been designed for the continuous production of seamless sweets, using a UNIPLAST type rotary die arrangement. Solid and centre-filled products of  Hard candies, Toffee Éclair, Chewy candies have all been successfully manufactured


       A typical production line comprises of the Centre filler, Batch Former, Five Stage Rope sizer, UNIPLAST Candy Forming Machine and cooling conveyor.



















      The UNIPLAST Candy Forming Machine is at the heart of the candy processing line and has therefore been designed with strength and durability as its main assets. The machine has a number of features, which make it an ideal choice for candy manufacturers.

  • Die rotation speed is variable by AC Drive

  • The speed of the in feed rollers can be varied relative to the speed of the die, which is particularly useful for difficult products like chewy candy

  • The main drive is through timing belts to reduce noise level and moving parts

  • Spreader conveyor motor is independent and adjustable

  • Scrap tray under the die with outlet for connection to a dust extraction unit

  • Spring loaded one piece pressure cam with cam rollers.

  • Automatic lubrication to cams and bearings

Output
A maximum of 60 to 80 die revolutions per minute can be achieved.





Three way COOLING CONVEYOR

Model

Application



Capacity



Drive



Blower

Belts Size







Weight



Dimensions

 DTW-C

Cooling  Hard Candies

Upto 5000 Kg. / 8 hrs. Shift.



Independent Geared Motors for each Conveyor



3 H.P. A.C

1St Plastic Belt 1000mm

2nd Plastic Belt 1000mm

3rd Plastic Belt 1000mm



Net 1200 Kg. Gross 1500 Kg.



5200x 850 x 1200 mm

High Capacity Cooling Conveyor Tunnel is suitable for all types of Hard candies, Toffee Éclair, Chewy candies, requiring sufficient Cooling before packing.

Three independent geared motor are fitted for each conveyor drive controlled from Electric Panel Board.

PANEL BOARD

Application

Dimensions (L X W X H)

Weight

Panel Board Candy, Toffee, Lollipop

1830  mm X 915 mm  X 400 mm

Net 300 Kg

 Panel Board will install back side rope Sizer where a single man can operate Batch Roller, Rope Sizer, Forming Machine and Three way Cooling Conveyor by pressing a single Button



AUTOMATIC CANDY WRAPPING MACHINE

Application

Capacity

Drive

Heaters



Dimensions (L X W X H)

Weight

Candy Wrapping (Double End Twist) Wrapping

600 PCs/Min

2 HP A.C. or D.C.

2.2 kW

1970 x 915 x 1474 mm

Net 900 Kg.

Candy wrapping Machine is suitable for twist wrapping of hard-boiled candies. The paper is also automatically cut into required lengths and candies are individually wrapped in this paper



CANDY PACKING (PILLOW-TYPE) PACKING

Application

Capacity

Drive

Heaters



Dimensions (L X W X H)

Weight

Candy Packing (Pillow-type packing)

800 PCs/Min

2 HP A.C. or D.C.

3 kW

1750 x 950 x 1550

Net 700 Kg. Gross 800 Kg.



Pillow Packing Candy Packing Machine is suitable for Pillow type packing for hard-boiled candies. Pillow-Pack is installed with Photo-Eye Mark censer. Pillow-Pack keep Candies Fresher for long period of time
